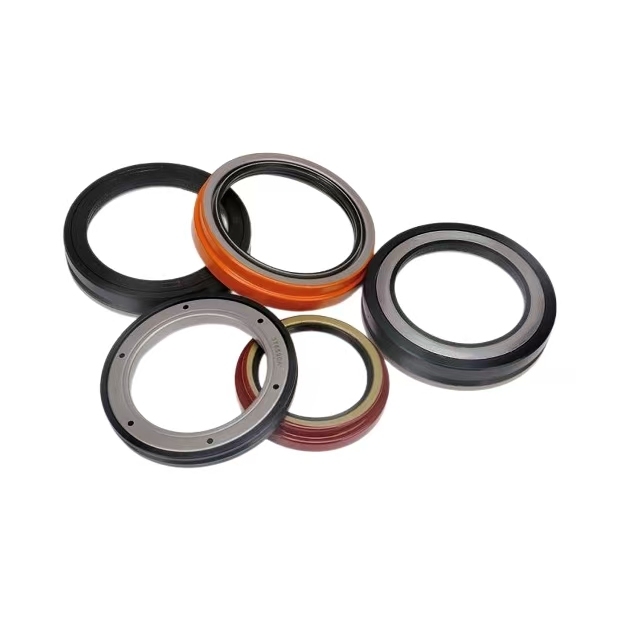

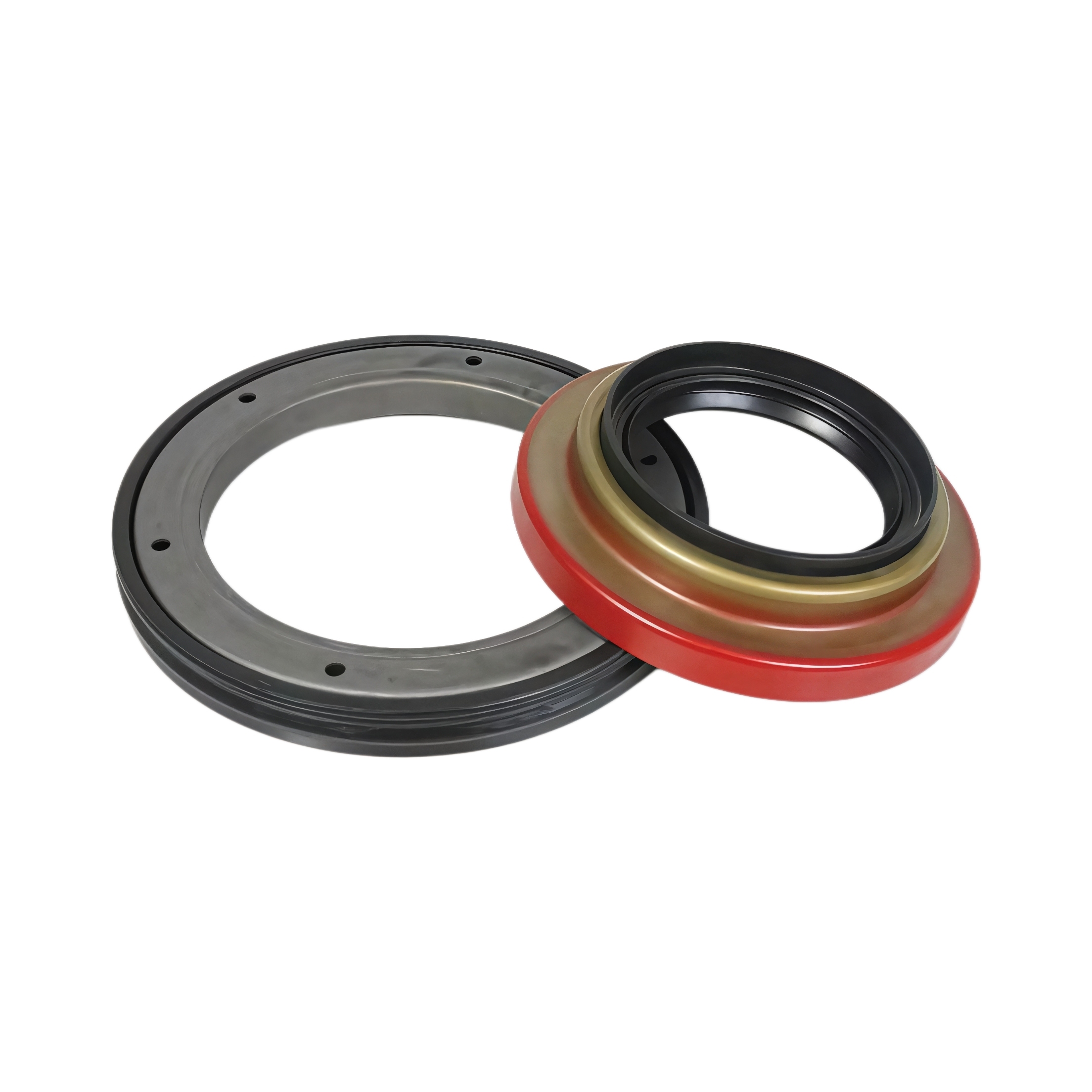

Mack truck wheel hub oil seal

Common Types and Structures

1. Single-Piece Metal-Cased Lip Seal

• Structure:
  • Steel casing with integrated rubber sealing lips (primary lip for oil retention, secondary lip for dust exclusion).
  • Spring-loaded primary lip ensures constant contact pressure against the shaft.
• Application: Standard-duty trucks (e.g., 10–25 ton GVW) with moderate road conditions.
• Advantage: Simple design, cost-effective.

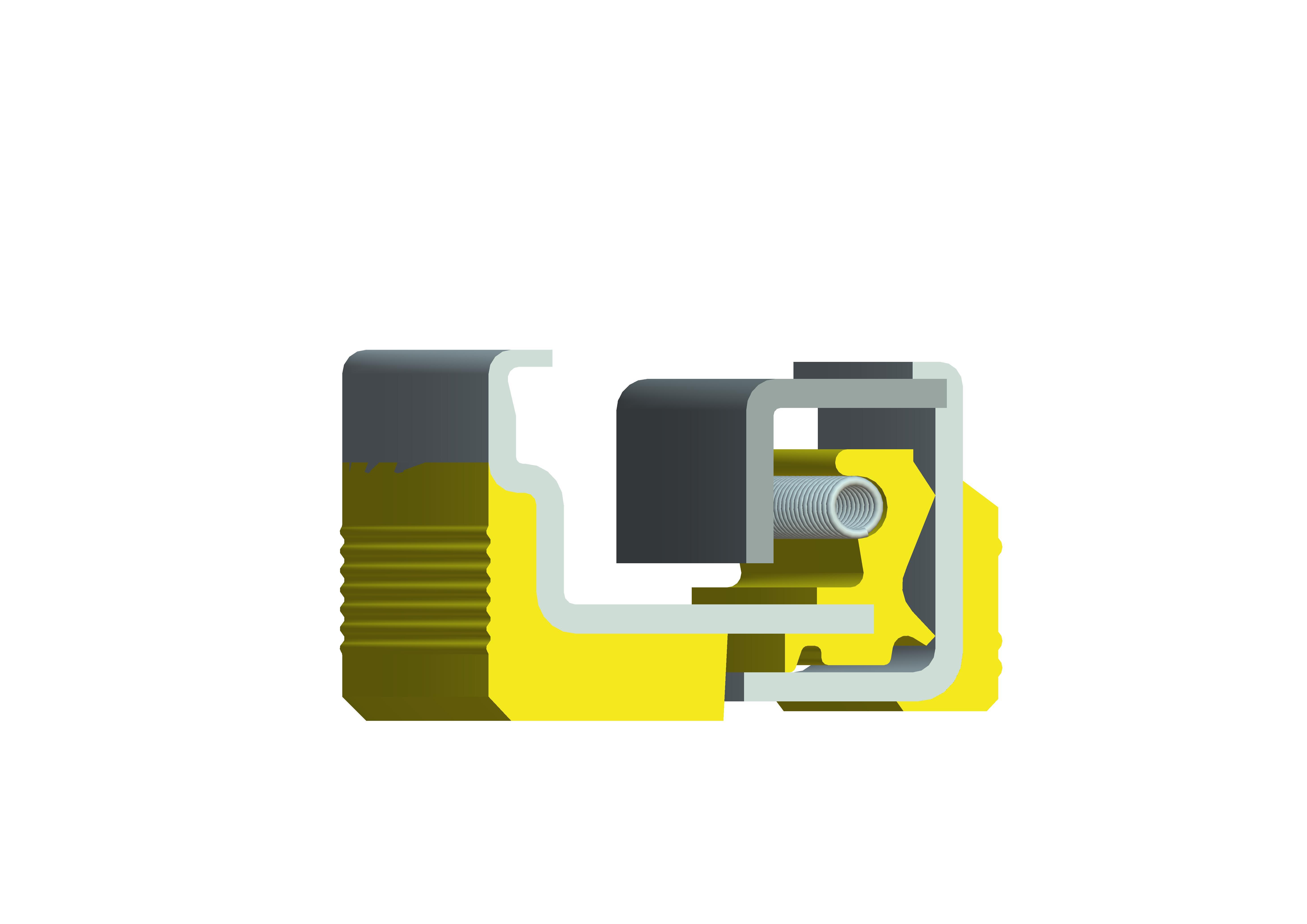

2. Double-Lip Composite Seal

• Structure:
  • Inner lip (PTFE or FKM) for oil sealing; outer lip (NBR) with reinforced steel band for dust/water resistance.
  • Optional metal wear sleeve (stainless steel) for the shaft contact area.
• Application: Heavy-duty trucks (30+ ton GVW), dump trucks, or vehicles operating in harsh environments (mining, construction).
• Advantage: Enhanced dual protection against leaks and contamination.

3. Mechanical Face Seal

• Structure:
  • Stationary carbon/graphite ring (mounted on the axle) and rotating steel ring (attached to the hub).
  • Sealing via a precision-machined contact surface (no rubber components).
• Application: Ultra-heavy-duty or specialty trucks (e.g., military vehicles, mining haul trucks).
• Advantage: Zero leakage, extreme temperature resistance (up to 200°C), and long lifespan.

• National number OIL SEAL	CR  number
  370001A  380001A	35059SS
  370003A	47697/47695/47692
  370069A	52658
  370021A	45160/45158/45157
  370023A	38780/38779/38776
  370005A	48001/48000/48002
  370006A	47699
  370012A	36285
  370011A	36358
  370019A	43860/43861
  370022/380022A	45099/45097/45093
  370024A	38750/38748
  370025A	46304/46305/46300
  2910BJ	35062
  1205	550270/15300/14710
  130528	1308TO
  376590A  FUWA	42623
  370031BG	42672/42673/42671
  446GC238B	59997/60000
  411275R	32397/32392
  340120	9859
  415563	32344
  2822VG	20596/20599
  415272N	27565
  127591	29528
  415027	35083
  415146	34889
  00310B sabo
  453341
  471750	12427
  291099	16289

•
